Thursday, September 19, 2013

Lake DeSmet






Last week, we were back on the road again between Washington and Minnesota. It was a fairly quick trip, so there wasn't much time to explore, but I did find one beach worth noting. I found it early the third morning of the trip pretty much by accident, since I was only looking for early sun on the Big Horns northeast of Buffalo (Wyoming).  I came around the corner and here was this wonderful red gravel beach!

Lake DeSmet began as a natural lake, although it has since been enlarged and turned into a reservoir.

Google Maps:  Aerial View

The hills surrounding the lake are Tertiary sedimentary rocks, marked by resistant outcroppings of clinker. Clinker is a red or black rock that results when coal seams burn and bake the overlying sediments (see Callan Bentley's Mountain Beltway Blog at AGU). It's common in the Powder River Basin (because there's so much coal - see hshipman: Black Thunder Mine 2012).

This beach was at the south end of the lake, next to the dam, and consisted entirely of gravel-sized clinker. There were a series of berms marking higher lake levels. The beach was swash-aligned, oriented pretty much straight into the northwesterly fetch - the winds can get pretty fierce around here.

Farther west, the red gravel stacked up nicely against the limestone riprap of the dam. And at the boat launch on the southwest corner of the lake, there was a neat little clinker spit built across the mouth of a drowned creek mouth (drowned by the reservoir).


(For non-beach photos of our ten-day road trip:
hshipman:  roadtrip 2013)

Thursday, September 05, 2013

Pritchard Beach


Compared to the very recent pocket beaches in the previous post, this is an older beach trapped in a natural north-facing cove.  I have no idea if the sand was brought in at some point, or has been replenished, or whether this beach just happened by itself.

Google Maps:  AERIAL VIEW

On these small curved sites, I'm always intrigued by the mismatch between the shape of the built shoreline (in this case, the curved concrete steps) and the natural shape of the swash-aligned pocket beach. Sometimes there's no choice. Sometimes, I think planners sort of thought that if they built the wall in a particular orientation, the beach would naturally do the same thing (no one asked the waves). And sometimes, I just see it as an opportunity to enlarge the beach in the future.




Martha Washington Park





This park is one of many places around Lake Washington where small beaches have been carved into the shoreline during the past decade. The idea is to restore a more natural shoreline and improve habitat for fish and wildlife. In general, these small beaches are also a big plus for recreational users - be they residents of lakefront property or visitors to public beaches.

Google Maps:  AERIAL VIEW


Lake Washington was lowered in the early 1900s, stranding whatever beaches existed on the resulting raised terrace. These small pocket beaches aren't restoring exactly what was there before, but they're sure an improvement over the bulkheads and stone revetments that line so much of the rest of the lake.


Tuesday, September 03, 2013

Dungeness River






The walk out to the mouth of the Dungeness was an unexpected bonus of our field trip to the restoration site being planned at the site of the old Three Crabs Restuarant by NOSC and WDFW.

NOSC: Three Crabs Restoration

The Dungeness River - one of the steepest rivers in the country (the fact that it's short helps this statistic) - has emptied out across the Sequim landscape since the glaciers left.  It has gradually shifted its way westward, leaving behind a broad complex of spits and old river channels, now occupied by smaller streams.

Google Maps: AERIAL VIEW

The current river mouth is complicated.  The shape of the coastline, and in particular, the presence of Dungeness Spit, shelter it from western wave action.  Spits appear to form in response to eastward waves and build westward across the river mouth until the river cuts them off.  The aerial gives a hint at this process.  And the beach east of the river cuts through old (but not that old) river channel gravels and marsh peat - underscoring the dynamic nature of this coastline.

Since the mid-1990s, a new spit has been forming along the western end of the Three Crabs Road and it's possible it will continue expanding westward until it reaches the river.



Diamond Point

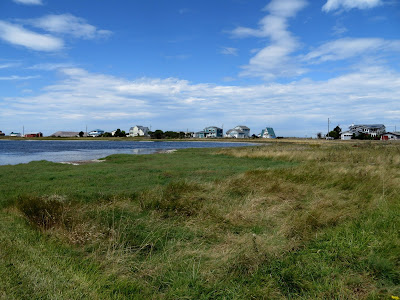

Diamond Point is a cuspate foreland at the northwestern entrance to Discovery Bay.  For many decades - more than a hundred years ago - there was a federal quarantine station and hospital on this site. It was eventually closed and the land sold. In the late 1950s, a residential development was built around the spit and a small private airstrip and little now remains of the historic buildings except for the old wharf.

History Link
Sunshine Acres History

Like most of these features, while the overall shape is fairly symmetric, the details are not.  The north limb is more drift-aligned, the south limb is more swash aligned.  The north limb suggests long-term erosion, the south limb appears much more stable. This is probably one reason that north side is heavily fortified, while the south side is not.
Google Maps: AERIAL VIEW

The north side is influenced (occasionally) by longer period swell and has a larger fetch for storm waves. The south side probably experiences more frequent storm waves, but the energy is limited by the fetch up the bay. Sediment transport is east along the northern shore, towards the point.  Sediment transport is a bit less clear on the south side. Keuler's USGS map suggests that drift continues around the point from the north and continues southward along the northwestern shore of the bay. An alternative explanation would be that Diamond Point represents the convergence of drift from both north and south.  This requires that southerly waves action dominates along the bluffs south of Diamond Point and that the erosion of those bluffs feeds the Point's southern beach.  I'm inclined to believe the latter, but would need more to go by than what I have at hand. There was at least some evidence that waves may wrap around the point from the north carrying sediment with them (accretion near the tip on the southern side), but I'm not sure it gets much farther.

Residents on the south side are concerned about erosion and overtopping during the past few years and we talked about a number of possible explanations.

1.  Chronic erosion of the south beach.  I saw little to suggest this was the case, in the field, in older aerial photos, or in the community's historic photos.  Old boat ramps did not indicate much long term beach change (ramps can be good references for noting beach profile changes).  And for some of the reasons above, I would expect this beach to be relatively stable - perhaps even accretional (although there wasn't much evidence of that, either).

2.  Human history. Erosion problems often have a human element.  Boat ramps and groins can alter sediment transport and cause localized erosion (and/or accretion).  When they've been present for many decades, then decay, the beach gradually reverts to a more natural configuration, although by then the actual culprit has vanished, leaving everyone scratching their heads at the "unexplained" erosion.  In this case, there are boat ramps nearby, but there was no obvious indication that they were affecting the larger reach.

A more likely issue, at least in my mind, was the old wharf. When active, it may have sheltered the beach from wave action and allowed accretion to occur.  But then as it fell apart, the beach would have eroded as it tried to reclaim its former position. If this has happened, there was certainly no obvious evidence of it.

The logs are an interesting story. The historic photos, and the memories of old timers, indicate huge numbers of logs on this beach (and many other beaches) many decades ago, but with numbers gradually diminishing since. This is consistent with a general notion that there were huge numbers of logs in the system mid-20th century, but that they have been gradually lost since then - for many reasons.  To the extent that broad rafts of logs protect the beach, their loss could lead to erosion.

3.  Short-term erosion related to storm events. This is common on beaches like this, particularly after extreme events like last December's record high tide.  Logs get floated away, exposing the underlying gravel to localized erosion and redeposition, but this doesn't necessarily reflect a more serious pattern. The bigger problem is usually the overtopping itself, but that's more a flood issue than an erosion one (and suggests different solutions).

This is a barrier beach (or what Wolf Bauer called an accretion beach).  These are flood zones. The berm was built by storm waves and there is no reason to think that the storm waves won't reach it again.  Like in most flood zones, flood events are infrequent and vary in frequency.  Severe events will often appear to be a sign of things getting worse, simply because few people will recall the last time it happened.  This is also a tsunami hazard zone, fortunately those are particularly infrequent.

.
